Project Gallery
We’re proud of our work and the substantial impact it’s had on our clients’ buildings and budgets — with improved lighting resulting in cost paybacks ranging from one to three years. Take a look!
Condominiums
McPherson Place
ENERGY SAVINGS = 25, 711 | $PAYBACK TIME = 1.5 years
- Retrofitted 130 existing fixtures in parkade to LED type B ballast bypass lamps.
- Recertified fixtures for CSA compliance.
- Recycled all old ballasts and fluorescent lamps appropriately.
- Installed bi-level dimming motion sensor fixtures in stairwell, mechanical room and parkade elevator lobby.
- Installed a multi-zoned occupancy sensor system in the parkade.
- Installed wire guards on sensors to protect the system from vandalism.

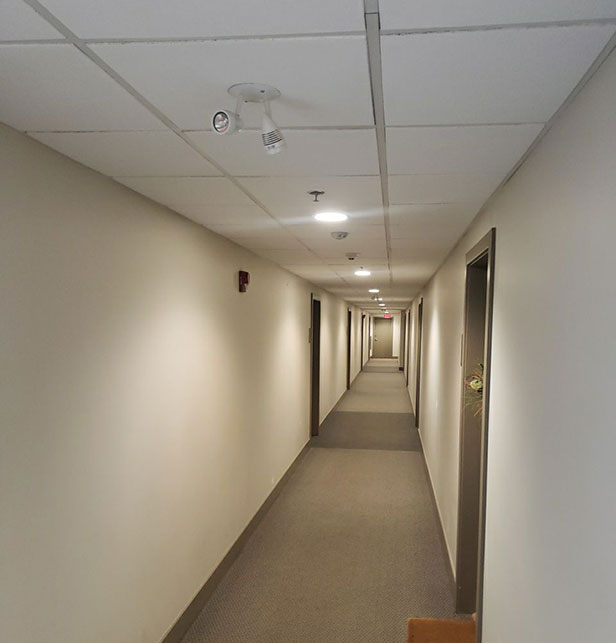

- Retrofitted all hallway pot lights to ballast-free LED plug lamps.
- Install surge suppression on 208V lighting panel.
Commercial
Solara
ENERGY SAVINGS = 25, 711 | $PAYBACK TIME = 1.5 years
- Retrofit completed on a total of 325 fixtures across 3 parkades, laundry room, loading dock and miscellaneous rooms to type B ballast bypass LED tubes and recertify fixtures to meet CSA standard 22.20.250.
- Designed, installed and optimized a zonal occupancy sensing system into the parkade to maximize energy efficiency and increase life expectancy of the lamps.
- Installed bi-level dimming motion sensor fixtures in all stairwells, and installed additional new matching fixtures and 6” wafer lights to increase light levels in areas with poor lighting.
- Retrofitted/replaced/installed new LED fixtures in select back of house rooms, service hallways and staff areas to increase light levels and reduce energy consumption.
- Added motion sensors to pool area so that majority of lighting will be activated only when motion is detected, and replaced obsolete fixtures above pool with more modern light fixtures.
Industrial
OPSCO Process Corp.
- Replaced 31 obsolete wall pack fixtures and 50 high bay fixtures with new energy efficient LED fixtures in shop space.
- Supplied and installed new explosion proof lighting in the sandblasting and paint bay.
- Install included using both 100W wall-mounted and 200W ceiling-mounted fixtures, as well as explosion proof fittings to ensure code compliance.
- Installed surge suppression on 347/600V lighting panel in the main shop.
Before
After
Outdoor Lighting

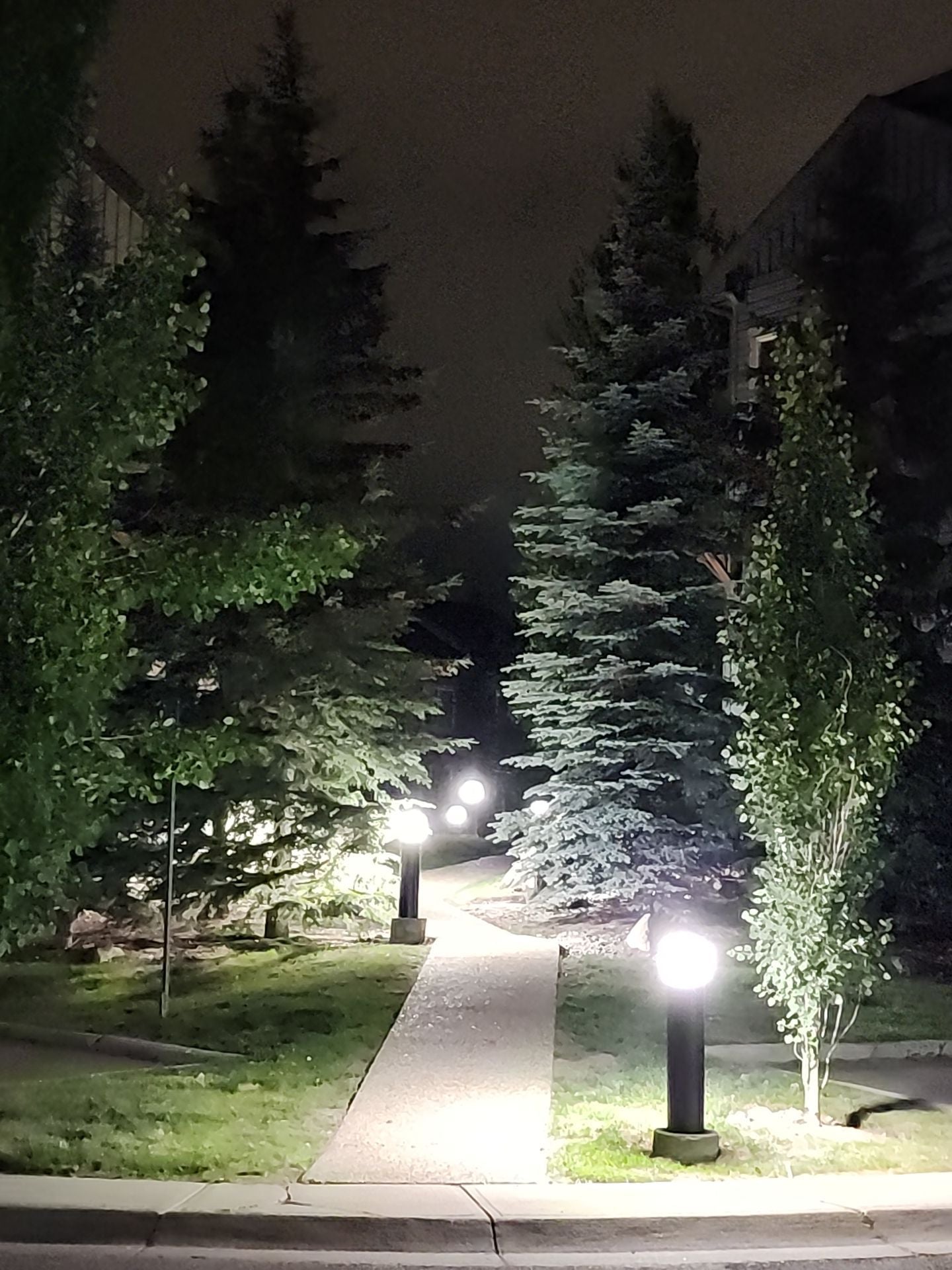

Stonewater
- Removed old bollards and repoured damaged and below grade concrete bases.
- Repaired, re-fed and installed new conduit and circuits into concrete bases for new and existing system
- Supplied, installed and levelled new bollards.
- Returned landscaping and gravel areas to their original condition once install was complete.
Commercial
Public Storage
- Retrofit completed on all fluorescent light fixtures to ballast bypass LED lamps in hallways of 4 storage buildings.
- Recertified all retrofitted fixtures to ensure compliance with CSA requirements.
- Repaired/replaced failed emergency lighting battery units and tested all remote heads for proper function.
Industrial
Pactiv
- Replaced existing 400W HID warehouse lighting with high efficiency LED high bay fixtures.
- Relocated fixtures to achieve ideal lighting conditions and prevent shadows caused by storage racking.
- Added motion sensors to further increase energy savings as well as prolong light fixture life (estimated to add approximately 5-10 years)
- Retrofitted old fluorescent lighting in offices and auxiliary rooms to maximize energy savings while reducing costs through reusing existing fixtures.
- Installed surge suppression on 600V panel to protect new investment and other expensive operating equipment.

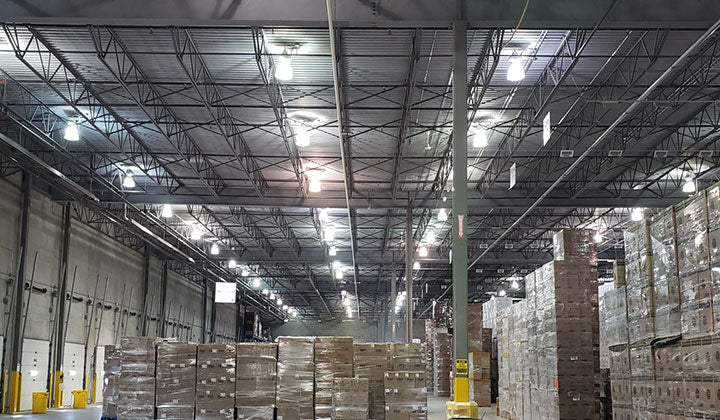

Before

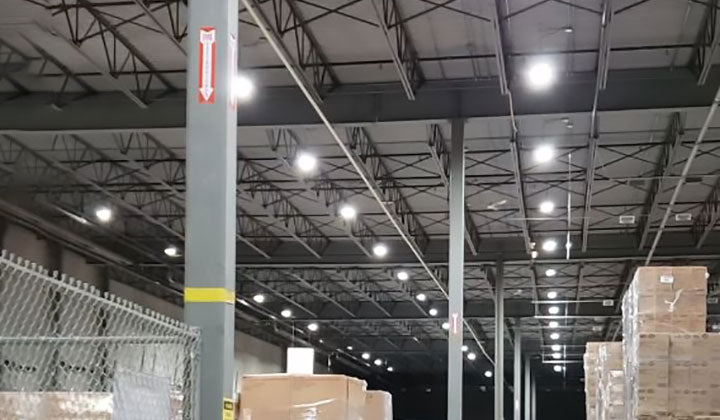

After
